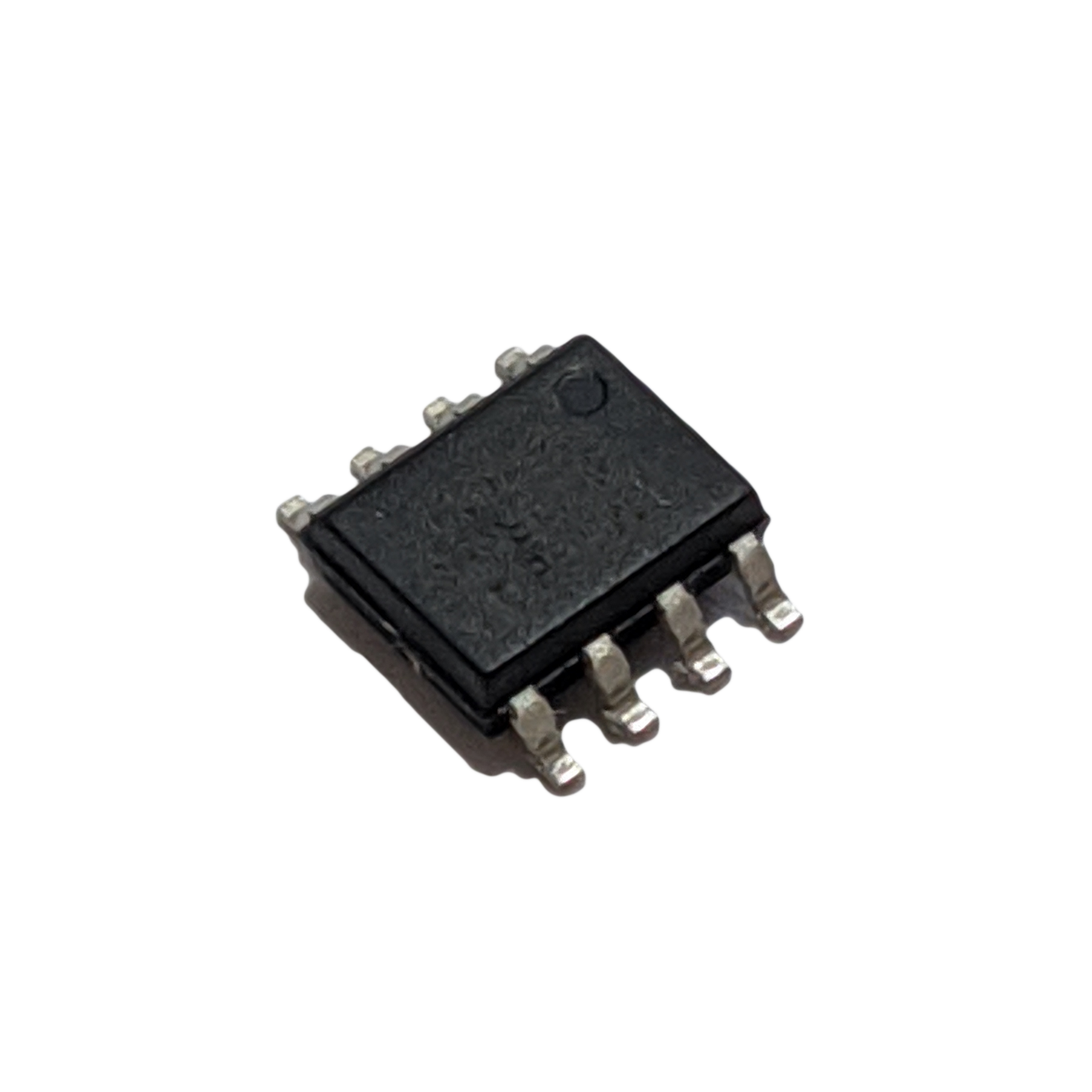

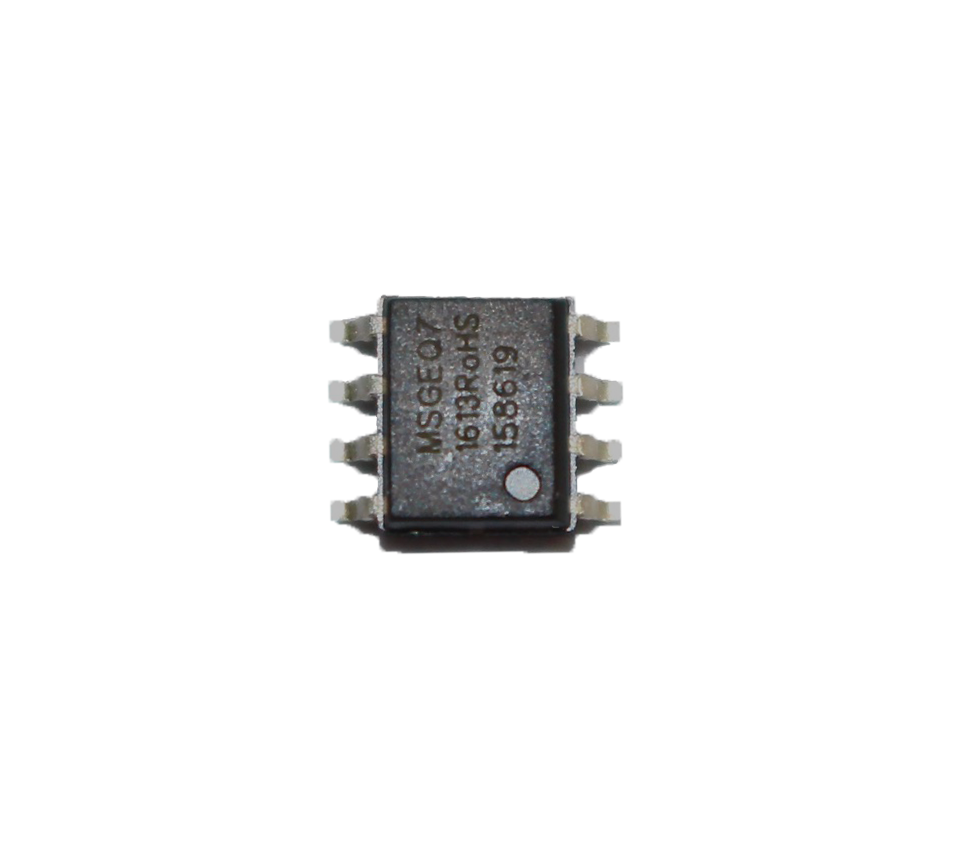

MSI MSGEQ7 Seven-Band Spectrum Analyzer Chips

MSI MSGEQ7 Seven-Band Spectrum Analyzer Chips

Regular price $74.40 USD
Regular price Sale price $74.40 USD
Sale Sold out
Shipping calculated at checkout.

The MSGEQ7 IC offers an economical way to measure frequency bands in an incoming audio stream. The seven frequencies are peak detected and multiplexed to the output to provide a DC representation of each band.

Not interested in soldering? Check out our MSGEQ7 breakout boards.

Pricing Details

3pcs @ $5.35/ea

10pcs @ $4.12/ea

20pcs @ $3.72/ea

50pcs @ $3.4/ea


View full details


A repository with sample MSGEQ7 code can be found on GitHub.

Alternatively, use the MSGEQ7 datasheet to write your own software.

Part Number: MSGEQ7

Manufacturer: MSI

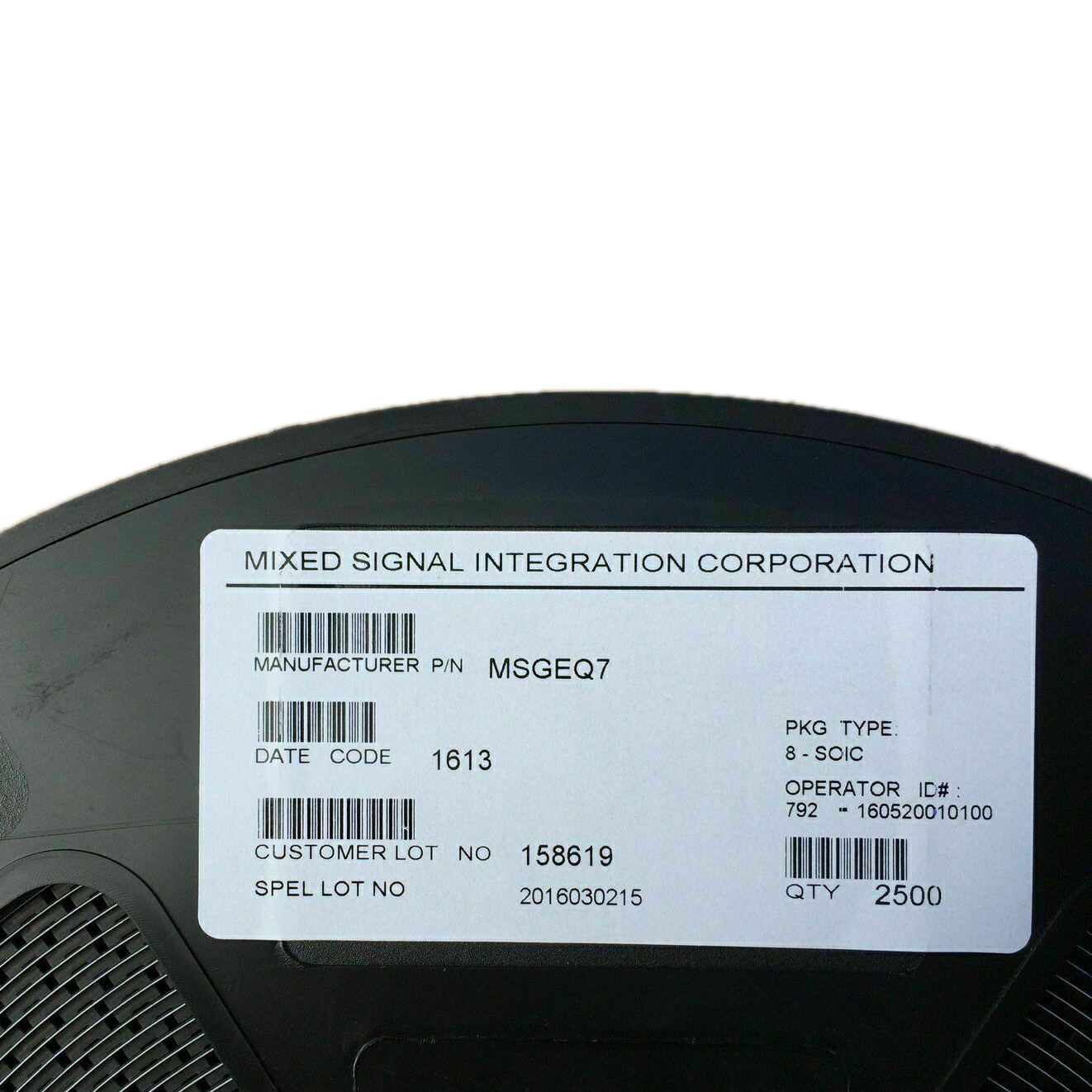

Packaging: Cut Tape

Package Type: SOIC-8

RoHS Compliance: Yes
